2. VoIP tutorial for adding SIP and IAX users     ( Back to Tutorials Page )

2.2. SIPPS softphone     ( « previous tutorial   |  next tutorial » )

You must have installed asterisk and registered the extensions and users as we did in the previous chapter. Another appropriate softphone client is SIPPS that supports IAX and SIP users and can be downloaded for free at the following address http://www.sippstar.com/en/demoversions.php

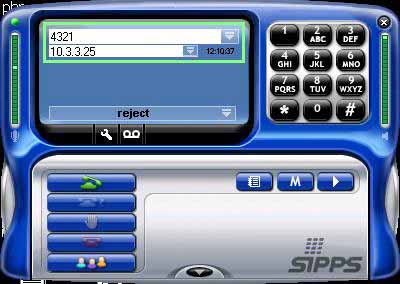

This is how the phone looks like:

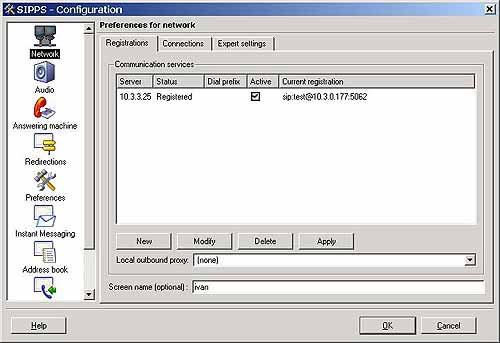

Select the config button left bellow the display and choose network.

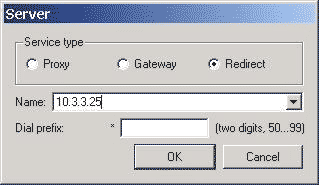

Click button ‘New’ and write down the Asterisk IP address (my asterisk IP is 10.3.3.25 but you have to type here the IP address of the asterisk you are using).

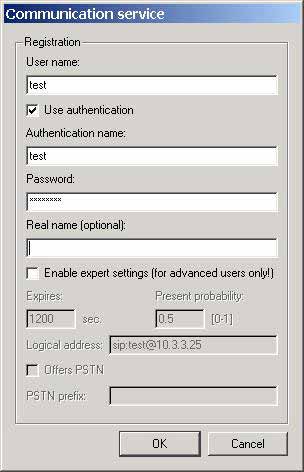

When you press OK a window appears where to register a user. Now let’s register a SIP user named test with password pwd_test (as secret in sip.conf where [test] user registered).
