Fritz Box is a device that makes possible to use PSTN phone and voip telephony over DSL. At the back of the device you can find several connections – DSL (for telephone line access), LAN (for local area network connection – PC, Switch, Hub), USB (for connection with pc or notebook), ISDN (for isdn or analog telephone line), FON1 and FON2 (for PSTN phones) and power-supply adaptor.
To open the web interface where to adjust the device just open a browser and type ‘fritz.box’ or ‘192.168.178.1’. If you cannot see this IP address change your IP address to one that is in the 192.168.178.1 network. After this you can change the Fritz Box’s IP address to one that is in your network and then change your network configuration to the old settings.
Now open the web interface and configure your Internet settings. Select internet/Account Information and enter the username and password that you have for Internet access.
Further on you can see the DSL Settings, I prefer to enable the recommended features (Optimize data flow and filtering for DSL modem). ATM parameters can be detected automatically and manually.
In the submenu ‘Port Forwarding’ you can forward the data flow for client or server application from one port to another.

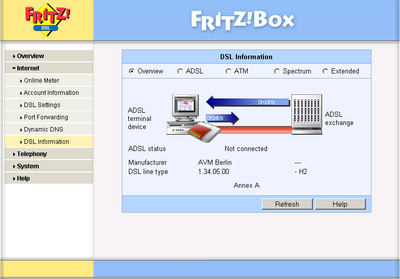

Here you can see information and statistics for your DSL connection.
In Telephony/Call List there is information for every call made – destination, number dialed, etc.
In Internet Telephony you can define telephone accounts. Here you register an account existing in Asterisk. I prefer to select the voice detection and speech compression options in order to reduce the bandwidth in the channel.
Here is how you can add new Internet account – username and password that are defined in Asterisk and IP address for the Asterisk PC. When the user is registered you will see it in the command line interface on asterisk or in the ‘Event Log’ submenu of ‘System’.
In ‘Extensions’ you can say what kind of extensions are valid for the different PSTN lines. I choose to allow all numbers.
Here in ‘Dialing Rules’ you can add prefix for the fixed-line network calls to be automatically added for every call. You can also define numbers or number ranges that are allowed to be dialed through Fritz Box. As you can see according to the settings above all 0800 and 0900 calls are permited.
In System the first submenu ‘Event Log’ is a place where you can see what is happening in every single moment. Use ‘Refresh’ to update the information shown in the window.
Here in ‘Network Devices’ you can see the computers that have access to Fritz Box. If you connect the Fritz Box to some local switch or hub you can connect as many PCs to the Fritz box as your hub or switch permits.
‘Network Settings’ is a submenu where you can adjust the IP of the Fritz box for the local network. As you see Fritz box has to be connected to your local network (has some IP address valid within your LAN) and to the public network (knows your real IP address and username and password to access it).
Here you can see my local IP address and subnet mask settings.
You can also set password protection for the Fritz box if you do not want unauthorized people to access it.
In ‘Firmware Update’ you can upgrade the firmware version you have. To install the latest firmware image available just go and download it from http://www.avm.de/en/Download/. Then browse the image location on your hard rdive and install it.
