1. MeetMe - this application allows you to create conference
NOTE: This application is valid for Asterisk version 1.0.9 and above.
Syntax:
MeetMe([confno][,[options][,pin]])
List with the possible options
'm' - The conference is in so called monitor mode ( Only listen, no talking) 't' - The conference is in talk mode ( Talk only, no listening) 'T' - Turns on the talker detection, it sends information to the manager interface and meetme list. 'i' - Announce who is joining/leaving the conference. 'p' - User can exit conference by pressing the # key. 'X' - User can exit conference by entering a single valid extensions ( ${MEETME_EXIT_CONTEXT} ), if this variable is not set - uses extension in current context. 'd' - Dynamically adds conference (Can not set pin for the conference). 'D' - Dynamically adds conference (Can set pin for the conference). 'e' - Selects first empty conference 'E' - Selects first empty pinless conference 'v' - The conference is in video mode. 'r' - If this option is selected, the conference conversation will be recorded in format ${MEETME_RECORDINGFORMAT} and saved as ${MEETME_RECORDINGFILE}. 'q' - Disable the enter/leave sounds. 'C' - On enter announce how many users are in the conference. 'M' - When there is only one user in the conference, music on hold will be played. 'x' - Close conference when last marked user exits 'w' - Wait until the marked user to enters the conference 'b' - Run AGI script set in the ${MEETME_AGI_BACKGROUND} variable, the default script is : conf-background.agi Note: This works only with Zap channels in the same conference)
's' - Enter menu (user and administrator) when *-key is pressed 'a' - Set admin mode. 'A' - Set marked mode. 'P' - Always ask for pin even if it is specified.
List of all used variables
${MEETME_RECORDINGFILE} - What will be the filename for the recorded conference ( option 'r' ). ${MEETME_RECORDINGFORMAT} - Recording format (gsm, wav, ...). ${MEETME_EXIT_CONTEXT} - The context for exit out from conference. ${MEETME_AGI_BACKGROUND} - AGI script for the conference ( ZAP only ). ${MEETMESECS} - Number of seconds a user participated in conference
Purpose and usage
This application is used primary for creating so called conference 'rooms'.
To see how the application works we recommend to use our IAX softphone Idefisk. You can download it from here. Please also read our tutorial to learn how to configure it to work with Asterisk PBX.
Asterisk PBX configurations
NOTE: This is only an example of what for you can use this application. Of course you can use it and for other things.
iax.conf Configurations
We need two registered users in iax.conf file. This is because we are going to use the IAX2 protocol. If you want to use other protocol such as SIP or MGCP, you have to do the configurations below respectively in sip.conf or mgcp.conf.
So, we have registered the users:userA and userB.
Type=friend means that this user can make and receive calls. Host=dynamic means that the IP is not static but dynamic through a DHCP server. Allow=all means that the line which this user will use, could support all audio codecs. Context=training - this shows that this user is working with the extensions in this context of the configuration file extensions.conf.
Now lets add and one sip user.
sip.conf Configurations
We need one registered users in sip.conf file. This is because we want to test and the SIP protocol.
So, we have registered the user sip_user.
Type=friend means that this user can make and receive calls. Host=dynamic means that the IP is not static but dynamic through a DHCP server. Allow=all means that the line which this user will use, could support all audio codecs. Context=training - this shows that this user is working with the extensions in this context of the configuration file extensions.conf.
meetme.conf Configurations

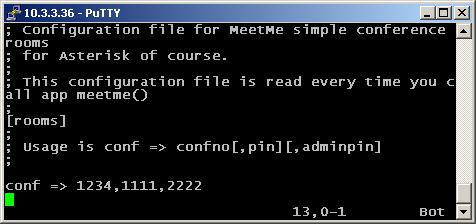

In order create conference room we have to configure it in the meetme.conf (look the picture below):
For this tutorial we are going to use meetme room number 1234, it will have also and PIN code for access (1111), and PIN code for the conference administrator (2222). We just follow the standard template:
conf => conference number,PIN,Administrator PIN

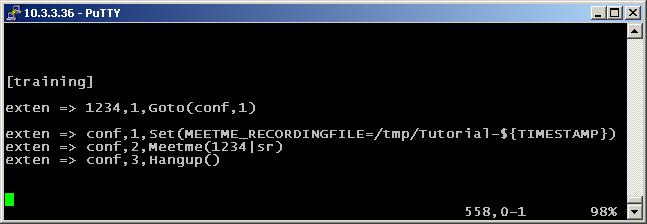

Now we have only to add some extensions in the extensions.conf
Finally, in order to be sure that the Asterisk PBX will hang up the line after the conversation is over, it is a good idea to make an extension for hanging up the line.

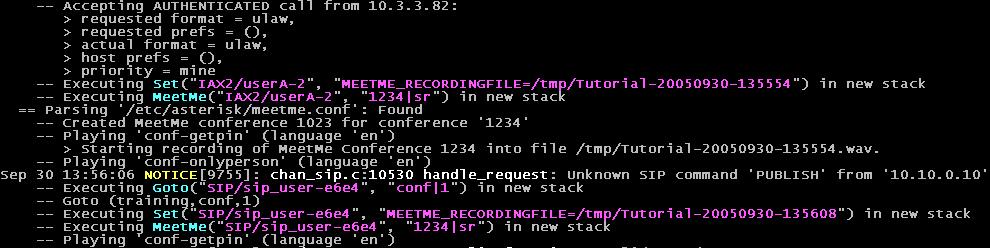

2. Screenshots of what you can see on the CLI of the Asterisk PBX
3. Additional information
For more information about extensions.conf you can check here.
For more information about iax.conf you can check here.
For more information about sip.conf you can check here.
This application is tested with our IAX softphone Idefisk. You can download it from here. For more information about this softphone please read our tutorial.
If you would like to test this application with the SIP channel you can read our tutorials about the SIP Softphones to learn how to configure them to work with Asterisk PBX
hydroxychloroquine for sale (ernestineschlin61 at bracer dot ml) 07 September 2020 18:05:59 hydroxychloroquine for sale https://chloroquine1st.com/
Peerless (k8iik2r3gfn at outlook dot com) 20 November 2016 08:34:57 Imrepssive brain power at work! Great answer! http://wsiowebu.com [url=http://sunhhpsq.com]sunhhpsq[/url] [link=http://myxueebvbr.com]myxueebvbr[/link]
Manish (ez8ex7yypuf at outlook dot com) 25 September 2015 12:38:26 Thank you for including YouTube in your list, most peploe seem to have forgotten or never known that this too is a social media slash disocvery site. People are posting comments and sending messages to each other left and right while still claiming YouTube is strictly a video platform well, of course it is, but it is also a social networkiung site, and a very useful one.
Juancho (bvninc at hotmail dot com) 04 November 2008 21:03:17 I know how to create Meetme rooms but using DID's but how can I enter the same conference room butfrom an IP Phone?
in other words how can I be in a confernce from an IP Phone? Wht do I ned to create or configure?
Farhad (farhad dot i at caspel dot com) 22 February 2008 10:26:53 Thank's good example
reloded (reloded at gmail dot com) 02 March 2007 06:59:49 Hi guys. Am new to asterisk. I've followed the guides here step by step and all's good so far.
However, trying to dial from x-lite, I get "Call failed: Not Found" No error code.
On the CLI on asterisk, I get
[Mar 2 08:52:20] WARNING[11507]: app_dial.c:1062 dial_exec_full: Dial argument takes format (technology/[device:]number1)
Someone please advice. I've been searching for a solution for the past 3 days with no success.
Thanks
Jo (mop77008 at mail dot telepac dot pt) 27 October 2006 18:42:10 I've tryed all the methods and I keep having the same warnings and error...
WARNING[2939]: chan_zap.c:915 zt_open: Unable to open '/dev/zap/pseudo': No such device
ERROR[2939]: chan_zap.c:7500 chandup: Unable to dup channel: No such device
WARNING[2939]: app_meetme.c:460 build_conf: Unable to open pseudo channel - trying device
WARNING[2939]: app_meetme.c:463 build_conf: Unable to open pseudo device
can any one help me please...
sanny (sanny_subaga at yahoo dot com) 03 October 2006 04:34:30 please help me to configure conference room
meetme dont have to be reload
CLI prompt is :
-- Executing Goto("SIP/sip_user-09aa0910", "conf|1") in new stack
-- Goto (training,conf,1)
-- Executing Set("SIP/sip_user-09aa0910", "MEETME_RECORDINGFILE=/tmp/Tutorial-20061003-103319") in new stack
-- Executing MeetMe("SIP/sip_user-09aa0910", "1357|sr") in new stack
== Parsing '/etc/asterisk/meetme.conf': Found
Oct 3 10:33:19 WARNING[4990]: config.c:499 process_text_line: parse error: No category context for line 4 of meetme.conf
Oct 3 10:33:19 WARNING[4990]: app_meetme.c:1675 find_conf: No meetme.conf file :(
-- Playing 'conf-invalid' (language 'en')
== Spawn extension (training, conf, 2) exited non-zero on 'SIP/sip_user-09aa0910'
meetme
No active MeetMe conferences.
help me ...
Andrew (asterisk at siliconandsynapse dot com) 06 August 2006 21:41:37 raju
You need to get the zaptel package from asterisk. Uncomment the line that says #ztdummy in the Makefile, compile and install. That will provide you with ztdummy module. Recompile asterisk. It should now detect that you have installed the zaptel package and it will create the meetme app. Then what I did, was simply copy app_meetme to my lib directory. (Its probably better if you reinstall asterisk.) Then you need to load the kernel modules zaptel and ztdummy. ztdummy provides a timer for the meetme app. Then follow the steps above to setup your extensions.conf file and meetme.conf and your good to go.
The link below is what I used to get it working
http://www.automated.it/guidetoasterisk.htm
raju (pkannamraju at hyd dot hellosoft dot com) 02 June 2006 13:05:09 hi,
I have set up everything as mentioned.
When i call from sip useragent(xlite) to
the conference extension i am getting 603
user declined
The error i am getting in cli prompt is:
Jun 2 16:28:41 WARNING[1990]: pbx.c:1697 pbx_extension_helper: No application 'Meetme' for extension (sip, conf, 2)
can any one help me regarding this.
davy (mooss6 at yahoo dot fr) 12 April 2006 12:16:32 Thank a lot for this file configuration, I try it and it's succes.
I haven't comment so, receive my congratulation.
