This application allows you to queue a phone call into a call queue. If somebody calls you, but the line is busy, because you already have another call, then the new caller will be put in the queue. The caller will hear music on hold until you are ready to answer its call.

Below, we will give you an example.

To use this application you need a working Asterisk PBX with registered users in iax.conf, sip.conf or mgcp.conf(It depends on which protocol you would like to use) and made extensions. Also, you need to create an context in the queues.conf and another one in the agents.conf file.

To see how the application works, we recommend you to use our IAX softphone Idefisk. You can download it from here. Please also read our tutorial to learn how to configure it to work with Asterisk PBX.

NOTE: This is only an example of what for you can use this application. Of course you can use it and for other things.

We need one registered user in theiax.conf file and also another one in the sip.conf file. This is because we are going to use the IAX2 and the SIP channels. If you want to use other protocol such as MGCP, you have to do the configurations below respectively in mgcp.conf.

So, we have registered the user user1 in the iax.conf file and the user operator in the sip.conf file.

Type=friend means that this user can make and receive calls. Host=dynamic means that the IP is not static but dynamic through a DHCP server. Allow=all means that the line which this user will use, could support all audio codecs. Context=test - this shows that this user is working with the extensions in this context of the configuration file extensions.conf.

In the sip.conf file you can see the following option: disallow=all. This means that the line will not support any codecs. However, below this option we have allow=ulaw, allow=alaw and allow=gsm. This means that the line will support these three codecs - ulaw, alaw and gsm. It is important to write the options exactly in this order. First you write the disallow=all option and then the allow options. Otherwise, if you write the disallow option after the allow options, no codecs will be supported by the line.

In this file you have to say which users or agents will participate in your queue. In other words, which users or agents will be responsible for the answer of an incoming call. More about the features of this configuration file, you can learn in our tutorial about the queues.conf file.

There are two possible ways to configure the settings in this file.

The first one, is the so called "static" way. For this configuration you do not need the agents.conf file.

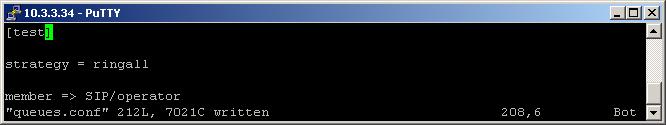

You will say directly, which users to answer the incoming call. In our example, we have created a context with the name [test]. In this context we have written the following: member => SIP/operator. This means that this user(operator) will be responsible for the answering of the incoming calls in the queue test. In the same way you can add even more than one user, which you would like to answer in this queue. However in our case we will have only one user. The advantage of this method, is that you do not have to use the AgentLogin or the AgentCallbackLogin applications in order to log the user in the queue. It will be logged in automatically, when it turns on its phone. The disadvantage is that this user can use, only the phone, on which it is registered. That is why the method is called "static". You can see a screenshot below.

The other way is the so called "dynamic" way. For this configuration you will need the agents.conf file.

In the section agents.conf Configurations we will show you the configurations in it and here we will explain you the configurations in queue.conf file.
Unlike the static method, here we have to write not the name of the user, but the number of the agent, as written in the agents.conf file. In our example we have written the following: member => Agent/8888. This means that we want the agent with number 8888, to answer the incoming calls in the queue test. If you decide to use this method you have to add in your dialplan either the AgentLogin or the AgentCallbackLogin application. This is necessary, because unlike the "static" method, here is not enough just to turn on your phone. The user has to log in itself in the queue, manually. The advantage of this method is that the user could log in from any place and phone, which is connected with the Asterisk PBX.You can see a screenshot below.

As we have mentioned above, we have to use this configuration file, if we decide to use the "dynamic" method. In this file, we have to create one or more agents. We will use them to answer the incoming calls in our queue.

The way of creating an agent is the following: agent => agentnumber,agentpassword,agentname. In our case we have written the following: agent => 8888,8888,operator. This means that we have registered an agent with number 8888, password 8888 and username operator. The agent is set in the [agents] context. The agent number will be used in the queues.conf file. Please, take a look at section queues.conf Configurations above, to learn how to do this.

Now lets take a look at the extensions.conf file.

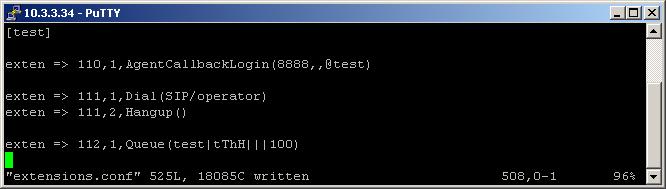

On the picture above you can see our extensions.conf file.

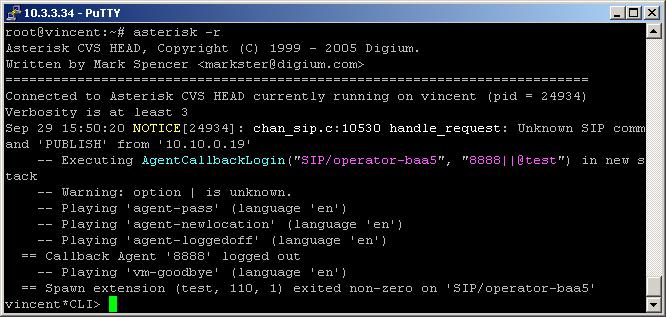

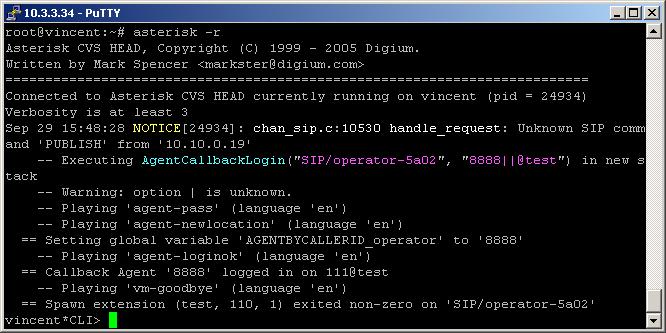

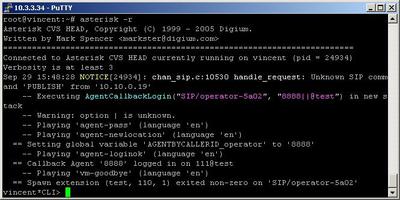

Firstly, we need a logged in agent. For the purpose, we will use the AgentCallbackLogin application. The agent has to call the number 110, which will execute the AgentCallbackLogin application. As arguments in its brackets we have set the following: 8888,,@test. 8888 is the agent number. In this way, the system won’t ask us for the agent’s number, it will ask us only for its password. We did not want to set any option, so we left the space between the commas blank. @test is the context in extensions.conf application, which contains the extension with the Dial application for the agent. When the agent log in, the system will ask it for its password and to enter an extension. The required extension is exactly the one with the Dial application. In our case the agent has to enter its password, which is 8888(set in the agents.conf file) and then the extension 111. This will cause the connection to the user operator through the SIP channel. Now the agent is ready to accept the incoming calls in our queue.

Now lets take a look at the Queue application. We have one extension, with number 112, which will execute the Queue application. As arguments in its brackets we have written the following: test|tThH|||100. Here test is the name of the context in the queues.conf file, where this agent is set. tT - this combination of letters will allow the called person and the caller to transfer the call. hH - this one will allow them to hang up the line by pressing the asterisk character(*). 100 is the timeout in seconds. If this time expires the call will be taken out from the queue and the next extension by priority, will be executed.

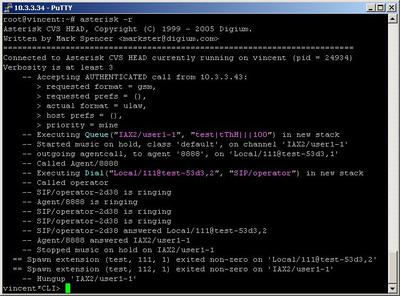

When somebody dials 112, the call will be attached in the queue. The caller will hear music on hold. Meanwhile the agent’s phone will be ringing. When the agent answers the call, the music on hold will stop and the conversation will start. If in the same time somebody else dials 112, it won’t hear a busy signal, but again the music on hold. The new caller could stay on the line until it decides to hang up, the set timeout expires or the agent answers its call.
